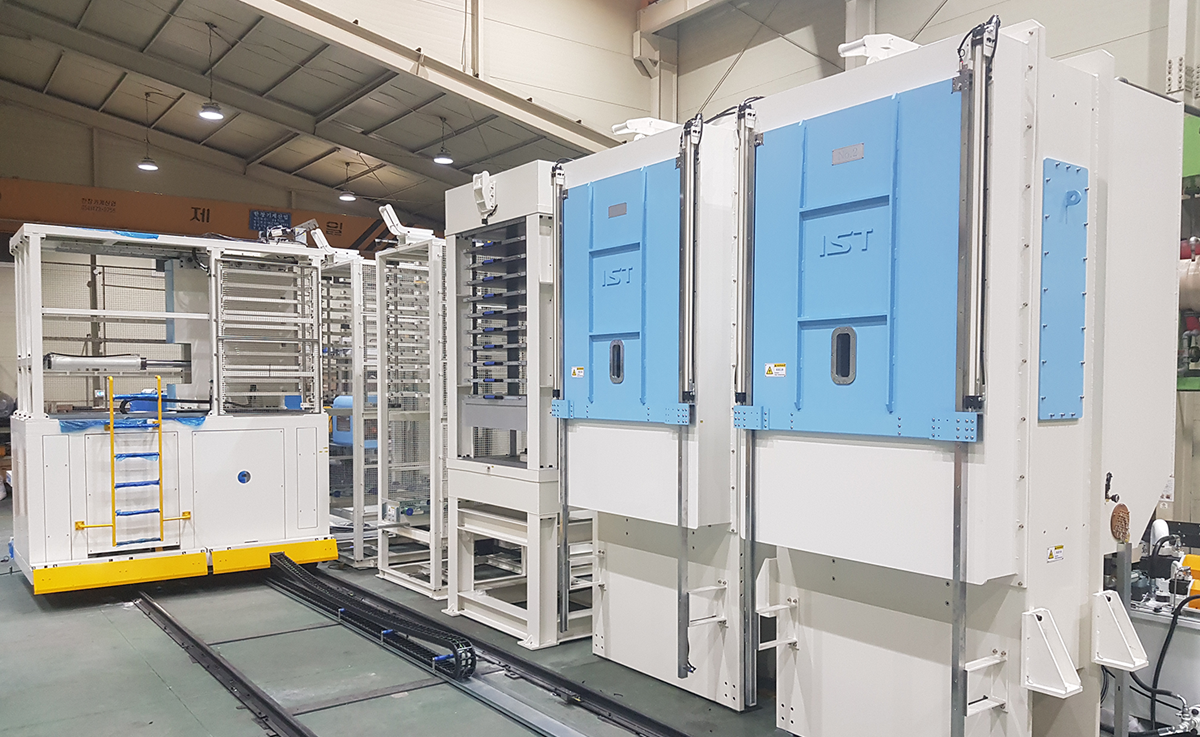

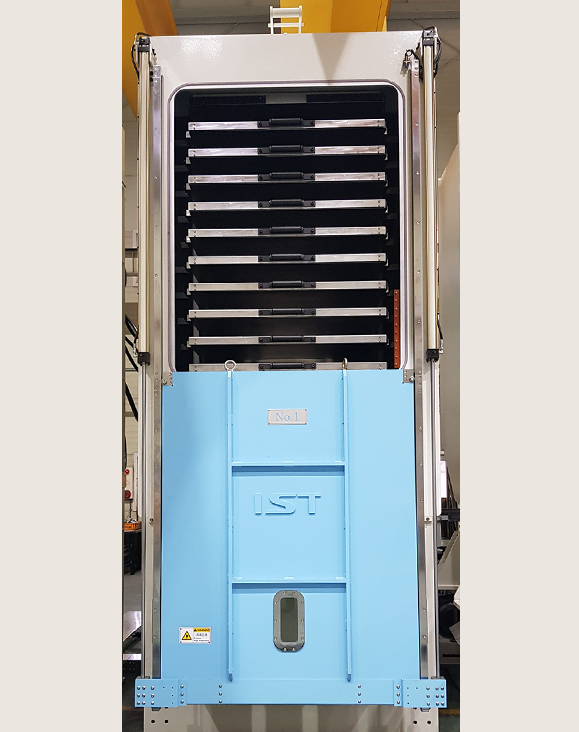

HOT PRESS
SPECIFICATION
- Platen 700~1350 x 800~1650
- 단수6~12단
- Daylight80~120
- Platen 두께45~50mm
- Press power250 ~ 950Ton
- 진공10Torr
- 온도제어표준 갭 : ±2도 / Platen 온도 : Max 250도
- 자동제어시스템터치 스크린 / 자동 프로그램 제어
option
- FULL AUTOMATIC SYSTEM
- MONITORING & MULTI CONTROL
- SUS PLATE SAPARATOR
- LAY-OUT CHANGE
- ORDER MADE

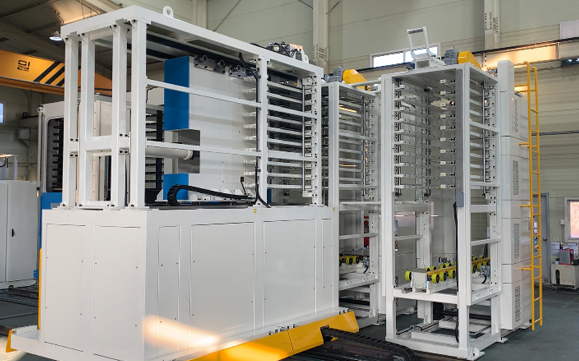

AUTO LOADER & STACKER
The carriers would be separated multy-layer after lay up and then they load into the machine.
It is possible to work full automatically according to the program of Hot press.
Cold press and Stacker.
레이업된 캐리어를 다단으로 분리하여 핫프레스,
콜드 프레스, 스테커의 프로그램에 따라 전자동작업가능.

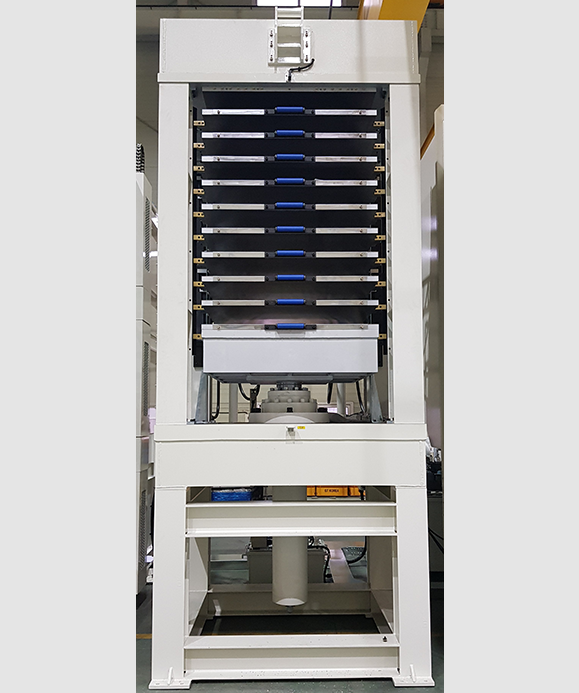

COLD PRESS
SPECIFICATION
- Platen700~1350 x 800~1650
- 단수6~12단
- Daylight80~120
- Platen 두께45~50mm
※ 모든 제품 사양 협의 가능합니다.
