HOT PRESS (LAY-UP LINE)JUMB SIZE HOT PRESS

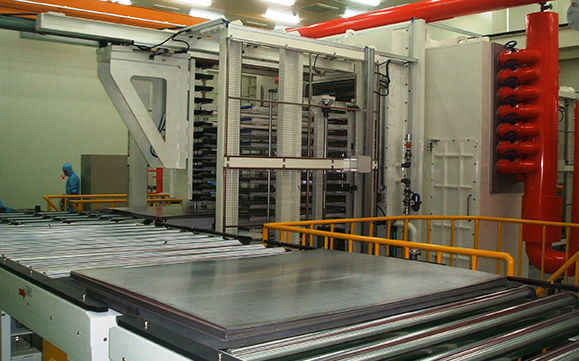

HOT PRESS

SPECIFICATION

  • PLATEN SIZE1400 X 1700 X 70 (mm)
  • OPENING12 - 15
  • THICKNESS DEVIATION20㎛
  • HYD. PRESS POWERMax. 800 tons
  • AUTO CONTROLTOUCH SCREEN
  • SYSTEMAuto Program Control
  • VACUUMMax. 20 Torr
    Standard Gap : ±2°C
  • TEMP. CONTROL Plate Temp : Max. 250°C
The carriers would be separated multy-layer after lay up and then they load into the machine. It is possible to work full automatically according to the program of Hot press.
Cold press and Stacker.
레이업된 캐리어를 다단으로 분리하여 핫프레스, 콜드 프레스, 스테커의 프로그램에 따라 전자동작업가능.

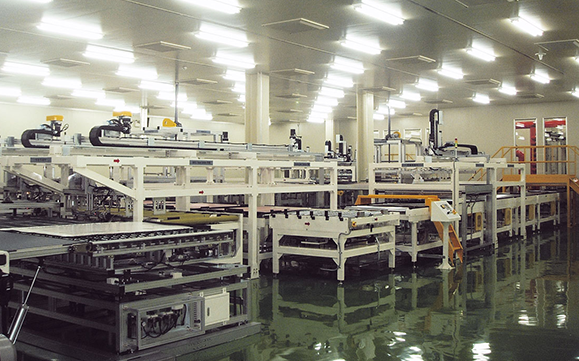

LAY-UP & BREAK DOWN

  • CARRIER
  • SUS PLATE
  • TOP PLATE
  • CUSHION PAD
  • FEEDING CONVEYOR
  • DEVERTER
  • WASHING & DRYER
  • PICK & PLACE
  • ROBOT TRANSFER
