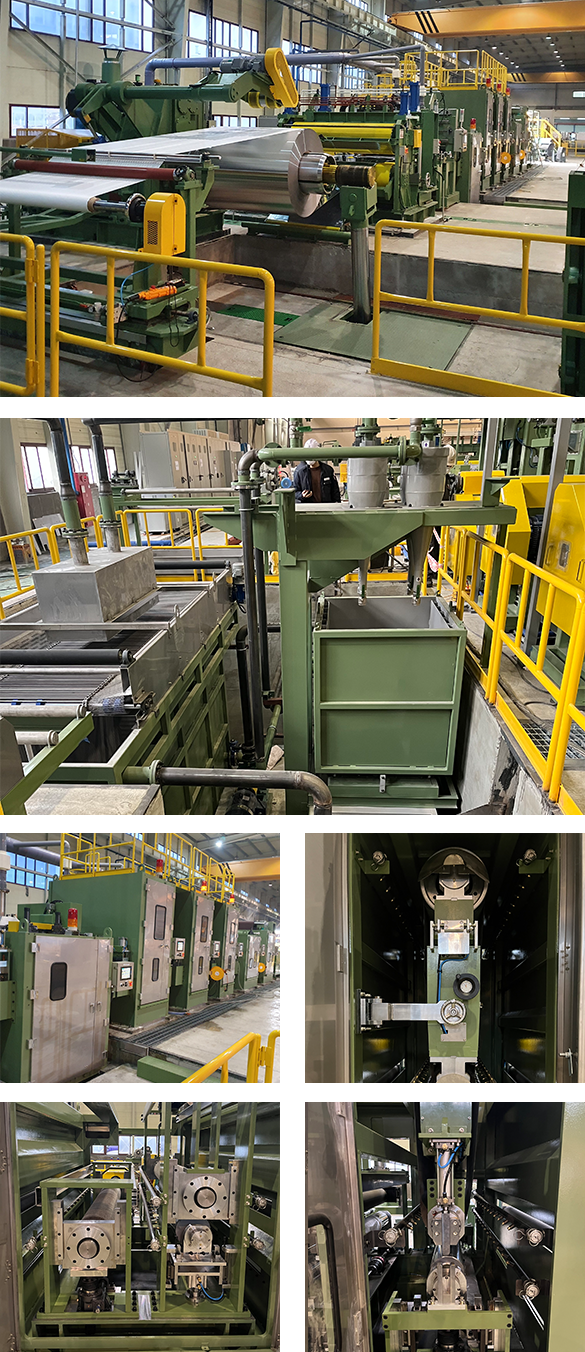

POLISHING LINECOIL POLISHING LINE 1
SPECIFICATION
- Drum diaØ360 ( No.4 Machine Criteria - Tilting System )
- Main motor 45 kw
- Belt size Min. 640mm ~ Max. 1,600mm ( W ) x 3200mm ( L )
- Working width Min. 600mm ~ Max. 1,600mm ( ±5% )
- Working Thickness ( Stainless Steel ) 0.3mm ~ 2mm
- Working Thickness ( Aliminum ) 0.3mm ~ 3mm
- Threading Speed Max 40 mpm
- Working Speed400 mm
- Control System Auto Program Control of Touch Screen ( PLC + HMI )
- Tracking SystemAir Cylinder Control by Air Sensor
- Application Stainless Steel & Aluminum & Steel
Unit Device
- Uncoiler & Recoiler
- Welding Machine
- Bottom & Top ( Polishing Maching )
- Buff Brush
- Hair Line
- Bruching
- Wash & Dry
- Product inspection table
- Sludge Treatment & Recycle
