PRESS LINE MULTI LAYER HOT PRESS 1

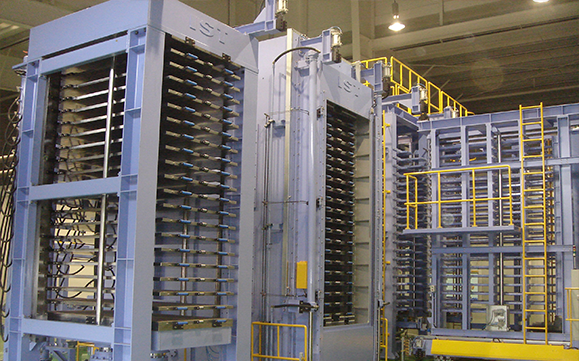

HOT PRESS

SPECIFICATION

• PLATEN SIZE1370 X 2400 X 60 (mm)
• OPENING20
• THICKNESS DEVIATION20㎛
• PRESS POWERMax 1,400ton (PLATE:49kgf/㎠)
• VACUUMMax. 20 Torr
• Temperature ControlStandard Gap : ±2°C
  Plate Temp : Max. 250°C
• CONTROL SYSTEMTOUCH SCREEN (Auto Program Control)

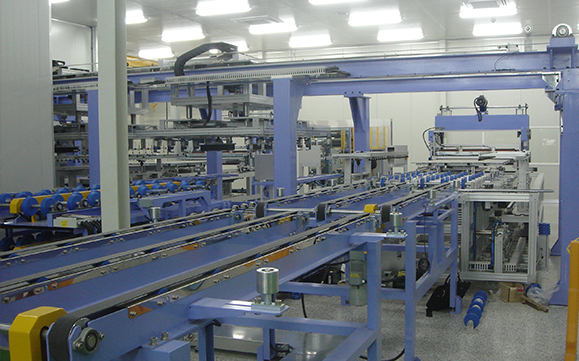

UNIT DEVICE

• AL B/D AUTO FEEDING
• RCC CUTTING M/C
• DOUBLE TRANSFER
• SUS WASHING UNIT
• SHEARING M/C
• PACKING M/C
• Multi-stage separation of laid-up Carriers enables fully automatic operation according to programs of HOT PRESS and Stacker
• Forming LED substrates, etc
